VDE

Advantages of VDE

VDE mark toolss certifies the conformity of the product with national and international standards as well as the fulfillment of legal protection requirements.

VDE mark toolss offer competitive advantages through a high degree of recognition, maximum product safety and globally recognized test quality. Purchaser and consumers all over the world know the VDE mark tools and use it as a reliable guidance when buying.

Wholesalers and retailers know that VDE tested products are demanded by the end-user.

VDE mark toolss are validated as a mark of conformity as well as an award by manufacturers, the trade, authorities and end-users.

The VDE mark tools is the premium brand for high testing and service quality and thus offers customer-specific advantages in minimizing risk in the design and production process. The neutral testing carried out by the VDE Institute means more safety in the development, production and use of electrical products.

The international certification service of the VDE Institute enables the problem-free recognition of VDE testing reports in national approval procedures, thus offering advantages for a rapid worldwide launch of the products. The VDE mark tools is also an important quality and safety characteristic for international manufacturers.

The VDE mark tools can be used as a marketing tool because of the consumer orientation to the requirements "safety" and "quality".

VDE tested products have a low complaint rate due to reliable test results as well as production inspections and performed market surveillances.

VDE tested products reflect the state-of-the-art in technology and offer improved legal certainty in case of unexpected problems with the application of the product in daily use.

The active participation of the VDE Institute in standardization allows a rapid response to changes in standards and offers a reliable basis for the application and managing of the normative requirements. These are important advantages for the VDE customers in the development process of their products.

How Are VDE Certified Tools Tested?

VDE Voltage Piece Test
To perform the Voltage Piece Test, our tools are submerged in water for 24 hours. After this period they are then electrified with 10,000V AC for three minutes. Neither a spark over nor a disruptive discharge through the insulation may occur. If and when no current is detected, they are approved for up to 1,000 V AC (and 1,500 V DC) thus earning the VDE Certification.

VDE Cold Shock Test
The tools are first cooled down to -25 °C ( -13°F), then during this process, the insulating material must retain its toughness so that it does not break when subjected to impacts and jolts.

VDE Adhesion Test
The adhesion of the insulating material coating is tested by applying a tensile force of 500 N following storage for 168 hours, (7 days) at 70 °C (158 ° F). The insulating material must continue to be firmly connected to the basic tool to pass when doing so.

VDE Pressure Test
No disruptive discharge may occur at a pressure load of 20 N, a temperature of 70 °C, and a test voltage of 5,000 V AC.

VDE Combustion Test
When exposed to a flame for 10 seconds, the insulating material must not continue to burn, but instead extinguish.

Difference Between ESD and VDE Tools

Electrostatic Discharge (ESD) Tools

Electrostatic discharge refers to the sudden flow of electricity between two electrically charged objects. This discharge can occur when an individual touches a component or device, potentially damaging sensitive electronic components or causing unexpected malfunctions. ESD tools are designed to prevent such discharges, making them essential for tasks involving delicate electronics and integrated circuits. Key characteristics of ESD tools:
● Conductive Materials: ESD tools are typically made from materials that are conductive, allowing any static charges to be safely dissipated. These materials help prevent the accumulation of static electricity on the tool's surface.
● Grounding: ESD tools often come equipped with grounding mechanisms or wrist straps. These grounding connections ensure that any built-up static charge on the user's body is discharged harmlessly to the ground, avoiding any potential discharge onto sensitive components.
● Surface Resistance: ESD tools have a specific surface resistance that ensures they do not become charged and can safely handle electronic components without risking damage.
● Applications: ESD tools are commonly used in electronics manufacturing, repair, and assembly, where protection against electrostatic discharge is critical to prevent component damage or data corruption.

VDE Tools

VDE tools are a set of tools designed to ensure the safety of electrical professionals when working with live electrical systems. These tools adhere to strict safety standards and regulations to minimize the risk of electric shock or other injuries. Key characteristics of VDE tools:
● Insulation: VDE tools are crafted with insulated handles or coatings, which prevent the transfer of electricity from the live components to the user. This insulation provides a protective barrier against electrical shock.
● Testing and Certification: VDE tools undergo rigorous testing and certification processes to ensure they meet safety standards. These tools are subjected to high-voltage testing to verify their insulation properties and overall safety.
● Color Coding: VDE tools often feature color coding on their handles, indicating their insulation class and the maximum voltage they can safely handle. This makes it easy for users to select the appropriate tool for a specific task.
● Applications: VDE tools are commonly used in electrical installation, maintenance, and repair work. Electricians and technicians rely on them to work on live circuits without the risk of electric shock.

Distinguishing Factors

While both ESD and VDE tools prioritize safety and performance, their main differentiating factor lies in their intended applications. ESD tools focus on preventing electrostatic discharge, safeguarding delicate electronic components, and preserving data integrity. On the other hand, VDE tools concentrate on protecting professionals from electrical shock and ensuring safe interaction with live electrical systems.
ESD and VDE tools represent two distinct categories of tools that cater to the specific needs of professionals working in the electrical and electronics fields. While ESD tools shield sensitive components from electrostatic discharge, VDE tools prioritize the safety of workers by providing insulation and protection against electric shock. Understanding these differences is essential for professionals to select the right tools for their tasks, promoting both efficiency and safety in their work environments.

Meaning of Symbol or Mark for VDE Tools

VDE-GS Mark
Technical working equipment and consumable materials subject to the applicable device and product safety laws bear the VDE-GS mark. This stands for the safety of the product with respect to electrical,mechanical, thermal, toxicological,radiological and other dangers. In addition, tools with the VDE-GS mark conform to the VDE regulations or European or internationally harmonized standards.They confirm the compliance with the safety requirements of the respective guidelines.

Double Triangle And Voltage Range
If insulated tools or aids are marked with the symbol of the double triangle and the assigned voltage or voltage range specification or the class,they are suitable for working on energized parts.

IEC 60900:2004
An international standard which,among other things, describes the design of insulated tools in detail.For example, the thickness of the protective insulation is specified. In addition, the standard defines individual tests (piece tests) as well as series and random sample tests for checking the electrical safety of the protective insulation.

VDE Certification Process

01/

Application

Manufacturers submit their products and detailed technical documentation to VDE for evaluation.

02/

Documentation Review

VDE experts assess the submitted documents to ensure compliance with relevant safety standards.

03/

Sample Testing

A product sample undergoes comprehensive testing, including electrical, mechanical, and environmental assessments.

04/

Factory Inspection

On-site inspections may be conducted to verify consistent adherence to the approved design.

05/

Certification

If the product passes all tests and inspections, the VDE certification mark is granted, indicating conformity with safety and quality standards.

06/

Regular Surveillance

Periodic audits and tests are conducted to ensure ongoing compliance.

VDE versus ASTM F1505 Certification Standards - What is the Difference?

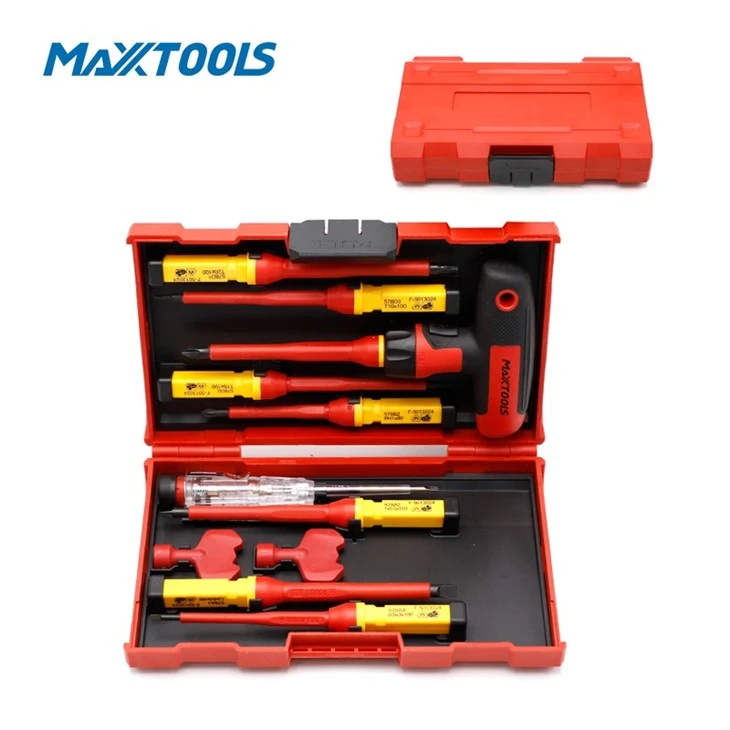

12pc T Handle VDE Screwdriver Set in Plastic Box

If you study an insulated tool carefully, you will notice the symbols and marks engraved on them. The two most popular symbols are the VDE logo and the double triangle symbol.

Popular in North America, ASTM F1505 certifies each tool that goes through the insulation process. An ASTM F1505-certified tool has the “1000V” and double triangle symbol engraved, as well as the year the tool was insulated.
VDE (Verband der Elektrotechnik - Association for Electrical, Electronic & Information Technologies) is a private compliance organization that will come into an organization and certify that the proper procedures are being followed in terms of testing.

Based in Frankfurt, Germany, VDE certification is mainly used by European and Asian manufactures. Once the insulation process is VDE certified, each tool that is manufactured using the process is automatically engraved with the VDE symbol.

Similar to the “dipped” versus “injection moulding” comparison the certification authority has no clear winner. Both ASTM & VDE require comprehensive testing before any tool can be marked as insulated. The key is to choose a tool that bears a symbol clearly indicating it is certified and tested to provide the level of protection expected.

VDE Tools Care

Visual Inspection
Perform a visual inspection on your VDE tools each time you plan to use them. If any cracks, nicks or other damage to the outer orange layer is visible, don’t use the tool.

Beware Of Temperature
Only use VDE tools in areas whose ambient temperatures are compatible with the manufacturer’s specifications. All of our tools are carefully manufactured to be extremely resilient, but it’s still a good idea to check beforehand. Always keep tools away from heat sources as this will cause damage.

Beware Of Non Insulated Parts
Don’t touch any parts of the tool that are not insulated as these parts could come into contact with an energised source and you will be at risk of electrical shock.

Keep Away From Sharp Objects
Ensure you keep your VDE tools away from any sharp objects, such as utility knives, to prevent damage to the outer material. A tool case or bag is a good solution.

Clean Your Tools
It’s important to take care of your VDE tools by cleaning and maintaining them regularly this will ensure many years of reliable service. All of our tools are tailor-made to be robust and long-lasting but it’s always a good idea to keep on top of the housekeeping.

What Does VDE Stand For?

VDE is the Association for Electrical, Electronics and Information Technology (formerly the Association of German Electrical Engineers) founded in 1893. It is the largest industry association in Europe in the field of electronic, electrical and information technology and is directly involved in the formulation of German national standards. VDE is headquartered in Frankfurt, with representative offices in Berlin and Brussels. In addition, it has branches and offices in Europe, North Africa, Asia and the Americas. VDE has a wide range of testing and certification services, covering electronic and electrical components, lamps and lighting equipment, consumer electronics products, information technology and audio and video equipment, home appliances, power tools and garden tools, solar products, fuel cells, batteries, industrial engineering, medical Equipment, automotive electronics, installation technology, wires and cables, etc.

Role of VDE Standards in Ensuring Safety

VDE standards play a pivotal role in safeguarding electrical workers by establishing rigorous requirements for the design, manufacturing, and testing of insulated tools. Tools that meet VDE standards undergo comprehensive testing procedures, including insulation resistance, dielectric strength, and mechanical endurance tests, to ensure their reliability and safety in real-world applications. The certification process verifies compliance with VDE standards, providing assurance to users that the tools meet established safety criteria.

Future Trends and Developments of VDE Certified Tools

Looking ahead, advancements in VDE standards and technology hold promise for further enhancing electrical safety. Continued research and innovation in insulation materials and manufacturing techniques may lead to the development of more durable, ergonomic, and cost-effective insulated tools. Furthermore, efforts to harmonize safety standards on a global scale can facilitate interoperability and streamline compliance for manufacturers and end-users alike.

Our Factory

Maxxtools Co.,Ltd was established in 2005 and concentrates on hand tools and labor supplies. It provides over 1000 different kinds of products to worldwide professionals who demand superior performance and durability on the job.In over 15 years history of supplying high quality product for our client, Maxxtools has gradually become the most reliable supplier of many famous tools importers, whosalers and retailers.

productcate-1-1

Ultimate FAQ Guide to VDE

Q: What is VDE in tools?

A: VDE stands for Verband der Elektrotechnik, who is responsible for testing and certifying tools and appliances. The VDE Testing and Certification Institute is a nationally and internationally accredited institution in the field of testing and certification of electrical engineering devices, components, and systems.

Q: How do VDE tools work?

A: VDE tools are hand tools designed for use in electrical applications. Primarily used by electricians, if used appropriately they keep the user safe from electric shock. Usually identified by red/yellow colours, the handles are insulated to up to 1000v.

Q: What is the difference between CE and VDE?

A: CE marking - Addressed to the surveillance authorities - governs the marketing of products in the European Single Market. The VDE Certification Marks confirm compliance with harmonized standards and take their important role as competent proof of compliance with requirements of safety, quality and EMC.

Q: What is the meaning of VDE certified?

A: The VDE seal (from the original name, Verband Deutscher Elektrotechniker) is meant to indicate safety and quality in electrical, information, and medical technologies.

Q: Is VDE mandatory?

A: The implementation of VDE standards is therefore voluntary. They only become legally binding when they are defined as mandatory by laws, ordinances or contractual partners. The fact that the regulations nevertheless play an essential role is due to the high status of standardization.

Q: Do you need VDE tools?

A: High voltage can travel along a tool's steel core and quickly jump to the user through a plastic or nylon handle. Put simply: without properly insulated tools to hand, electricians could be risking serious injury, liability or even death.

Q: What is VDE standard for cables?

A: In the evaluation of electrical cables, the VDE standard provides information on the construction and characteristics of the cable. Today, the wide range of cables used throughout Europe is subject to evaluation by engineers worldwide and requires high reliability under demanding conditions.

Q: What is a VDE screwdriver?

A: VDE screwdrivers are widely used by electricians due to their being insulated to protect against shocks. They're made by a variety of trusted brands and can be quickly identified by their eye-catching red handles. You can buy them individually or in handy sets to tackle a wide range of electrical jobs.

Q: What is the rating of VDE?

A: VDE has a conensus rating of Moderate Buy which is based on 90 buy ratings, 23 hold ratings and 3 sell ratings. What is VDE's price target? The average price target for VDE is $151.22. This is based on 116 Wall Streets Analysts 12-month price targets, issued in the past 3 months.

Q: How is a VDE different from a normal screwdriver?

A: They are constructed from non-conductive materials such as rubber. VDE screwdrivers are also designed with safety in mind. VDE is an internationally-accredited institution that tests tools to certify that they meet the necessary safety standards. These tools are ideal for electricians.

Q: Why use VDE screwdrivers?

A: VDE is a testing and certification institute who are internationally accredited, these tools are intended to help prevent injury from electric shock and serious injury.

Q: What does the VDE standard on a screwdriver apply to?

A: Seeing the VDE trademark on a pair of pliers or a screwdriver gives the user the assurance that it's safe to use with electricity. Wherever you see the VDE mark you will often find a voltage limit, this indicates what voltage levels the tool is safe to work with.

Q: Do I need VDE tools?

A: Put simply: Without properly insulated tools to hand, electricians could be risking serious injury, liability or even death. It just goes to show that a good selection of VDE-certified hand tools will always be a key part of a wholesaler's offering.

Q: Why are insulated tools so expensive?

A: Insulated tools are typically more expensive than comparable regular tools. The process each tool goes through to provide full user protection against electrical shock is both complex and time consuming.

Q: What things must you look before buying insulated tools?

A: All insulated tools must be marked with an official 1,000-volt rating symbol, which ensures the user is protected for live use up to 1,000 VAC or 1,500 VDC, and the year it was insulated.

Q: How do VDE screwdrivers work?

Q: What is the difference between insulated and non insulated tools?

A: Regular screwdrivers and pliers have plastic or nylon handles. These don't protect you against contact with a high voltage electrical line. The difference between these and regular hand tools is that insulated tools provide true electrical isolation on the handle.

Q: What are the advantages of insulated tools?

A: It enhances safety for workers and prevents damage to equipment. Insulated tools also ensure compliance with safety regulations and standards, promoting a safer work environment. Insulation is an additional resistance for protection or to resitting the flow of current.

Q: What screwdrivers do electricians use?

A: Depending on the task at hand, an electrician will use one of 3 types of screwdrivers. flat tip, Robertson or Phillips and, of course, there are various sizes of each type. Most electricians will carry a multi-tip type screwdriver due to the many different types and sizes of screws out there!

Q: Why are tools double insulated?

A: If the housing is made of conductive material, namely some iron or iron-containing compound, then the tools must have a grounding conductor and a 3-prong plug. Double insulation eliminates the risk of electric shock without relying on grounding or a safety extra-low voltage power source.
